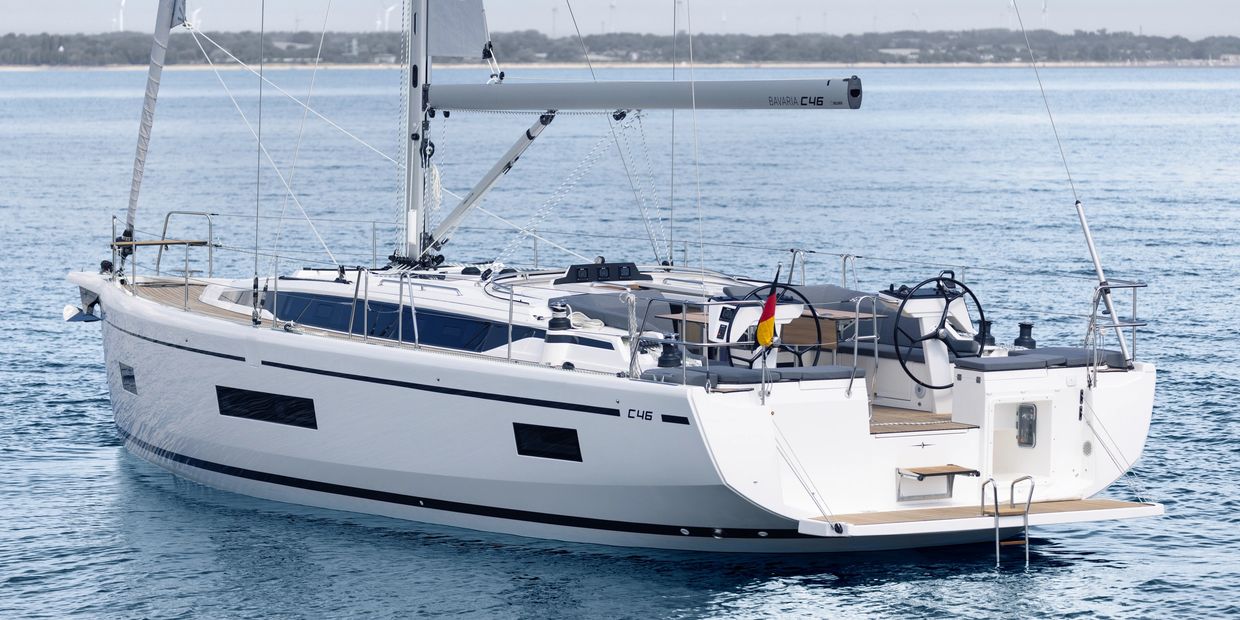

2023 Bavaria C46 FOR SALE

Furling Mainsail Intracoastal Waterway Rigging: Cruisetech Dacron, mast and mainsail electrical

PLUS:  full battened Elvström Sporttech laminate furling mainsail

Furling Jib: Cruisetech Dacron and Elvström Sporttech laminate, electric and self-tacking

Dimensions

I 62’ 2”

J 18’ 7”

P 59’ 5” and 58' 7"

E 21'

CE Category A12 / B14 / C16

LOA 47’ 6”

LOA including bowsprit 48’ 9”

Hull Length 45’ 8”

LWL 43’ 7"

Ballast Upgraded 6,301 lbs

Displacement Standard 28,065 lbs

Displacement Option 28,689 lbs

Furling Mainsail 581-668 sq ft

Jib 516-533 sq ft

Hull

· Produced in hand lay-up in E-glass with polyester resin and PVC foam core above waterline

· ISO NPG gelcoat

· Cove- and waterline in ISO NPG gelcoat

· GRP innerliner in hand lay-up E-glass with polyester resin

· Including drainage grooves for bilge, passage for tubes, hoses and wiring plus reinforcements and bulkheads for water protection and loads

· Windows in mineral glass glued to recessed hull with print and plastic frame from inside

· Stainless steel bow protection

· Chain plates for shrouds and backstays

· Keel, L-shape, cast iron with shallow draft 1,75 m (5’ 7”)

Engine

· Yanmar 4JH80 diesel engine with 59kW / 80hp with saildrive

· Electronic engine panel for start/stop and all engine and fuel information

· Separate circulation for freshwater heating (together with hot water boiler)

· Flexofold Folding 3 Blade Propeller optimized for engine ratio (20 x 15 x 3L)

· Rated Output: 58.8 kW / 80mhp

· Rated Speed: 3200 rpm

· Displacement: 2L / 122 cu. In.

· 4 Cylinders

· Cylinder Bore x Stroke: 3.31 in X 3.54 in

· Combustion System: Direct injection, Bosch Common Rail System

· Aspiration: Turbocharged and Intercooled

· Alternator: 12V – 125A

· Dry weight without gear: 505 lbs

· Dimensions: 909 mm x 613 mm x 675 mm

· Controls: Mechanical

· Certifications: RCD2 / EPA Tier 3 / EPA Tier 3C / BSO II EMC / SOLAS

Fuel consumption based upon Engine Speed (min-1): 1600 uses ½ gal / 2400 just under 2 gal / 3200 just over 4 gal / ALL gallons per hour

Electrical System

1 x engine battery 12V / 95Ah, AGM

1 x service battery 12V / 1 x 180Ah, AGM

Battery charger 40Ah (3 channels)

Navigation Premium Package Upgrade

· Display, 2 x B&G Triton² digital displays in cockpit

· B&G Wind vane

· DST800 Transducer for speed, depth and temperature

· Multi function display, 2 x B&G Zeus³S 12" with integrated GoFree™ Wi-Fi; all-weather touch screen and expanded keypad at helmstation located starboard

· VHF, B&G V60 with integrated AIS Receiver + B&G H60 wireless handset at chart table

· Autopilot B&G, with compass and WR10 wireless remote control

Sail Ready Package

· Battery extension plus additional service battery (2x180Ah / 12V, AGM with additional charger 60A)

· Light package in cockpit

· Guardrail exit on both sides

· Indirect light on the floor interior

· Blinds for coachroof and hull windows

· Additional mast step

· Shower in cockpit with warm and cold water

· Mooring kit (6 fenders and 4 mooring lines)

· Bow thruster retractable, includes additional battery

· Stern thruster retractable, includes additional battery

Design Package:

· Ceiling panel is fabric covered with linear lighting

· Headboard for berth and mirror at entrance door of owner's cabin

· Main bulkhead with fabric covered panels

· Full length mirror in salon

· Handrail is stainless steel with leather cover in salon

· Hooks for clothes in salon and cabins

· Gratings for head and shower

· Ambient lights in ceiling panel and below upper cupboards in salon and cabins

· Pantry upper locker and salon upper locker with colored covers

· Cockpit cushions including back rests on stern

Standard Standing and Running Gear:

· LED Navigation lights

· Rod kicker

· Wind indicator

· Running rigging with dyneema halyards

· Backstay adjuster, mechanical

Standard Cockpit and Deck:

· Deck (hand lay-up sandwich construction), cockpit floor, side decks and coach roof with non-slip structure

· GRP deck innerliner is signal white

· GRP hatch anchor and sail locker

· Cockpit lockers on both portside and starboard

· Transom locker starboard

· Fuel tank concealed in cockpit

· Midboom sheeting system

· Self-tacking jib system

· Jib furling system is above deck

· Pulpit and pushpit in stainless steel

· Railing including stanchions and stainless steel wires

· Blocks, organizers and jammers for running rigging, padeyes for safety lines and flagpole

· Halyard cover with inspection openings

· Halyard box

· Handrail on coachroof is stainless steel

· Bow fitting with anchor roller

· Magnetic compass on starboard helm pedestal

· Mooring cleats, 4x are stainless steel and fixed

· Mooring cleats, 2x are stainless steel and fixed, located midship

· Coachroof window 1x on each side including 3 portlights

· Deck flush hatches, 8x, open access for cabins, heads and salon

· Skylights; 2 in salon and 2 portlights per cockpit side for aft cabins

· Companion way with sliding hatch and hinged doors

· Footrests behind steering pedestal for level standing while under sail

· Esthec on cockpit benches

· 2 Cockpit tables with storage that manually lowers into sunbed

· BBQ at stern located starboard

· Cooler with compressor in transom locker located portside

· B-Box storage with easy access from bathing platform

· Sprayhood with handhold

· Bimini top

Entertainment Package

· Radio entertainment system Fusion MS-RA770 Apollo Marine with DAB+ and 2 speakers in salon

· Fusion ERX400 Apollo remote control with 2 speakers in cockpit

· Radio entertainment system Fusion MS-RA210 with DAB+ and 2 speakers in owner’s cabin

· TV preparation in salon and in owner’s cabin

· Mobile phone chargers at chart table and in foreship and aft cabins

Accommodations & Comfort

· Queen size “island” double berth, storage, separate head and shower stall as front owner’s cabin

· 2 twin cabins aft incl. head with shower stall on port side

· Luxury cold foam mattress with memory top incl. box springs for all berths 3 cabins

· Electric toilets with fresh water flush system for front cabin and aft cabins

· Cockpit cushions plus backrests for stern

· Reading lights incl. USB charger in salon and cabins

· Handrail on ceiling in stainless steel

Galley

· U Shaped, port side

· Laminate countertop surface

· 3 burner stove with oven (gimble)

· Microwave PREPERATION only for 110 V, provide your own

· Top loading fridge, 110 L / 29 gallons

· Additional drawer fridge and feezer totaling 160 L / 42 gallons

· Extractor hood

· Salon Dining Table folds into double berth
