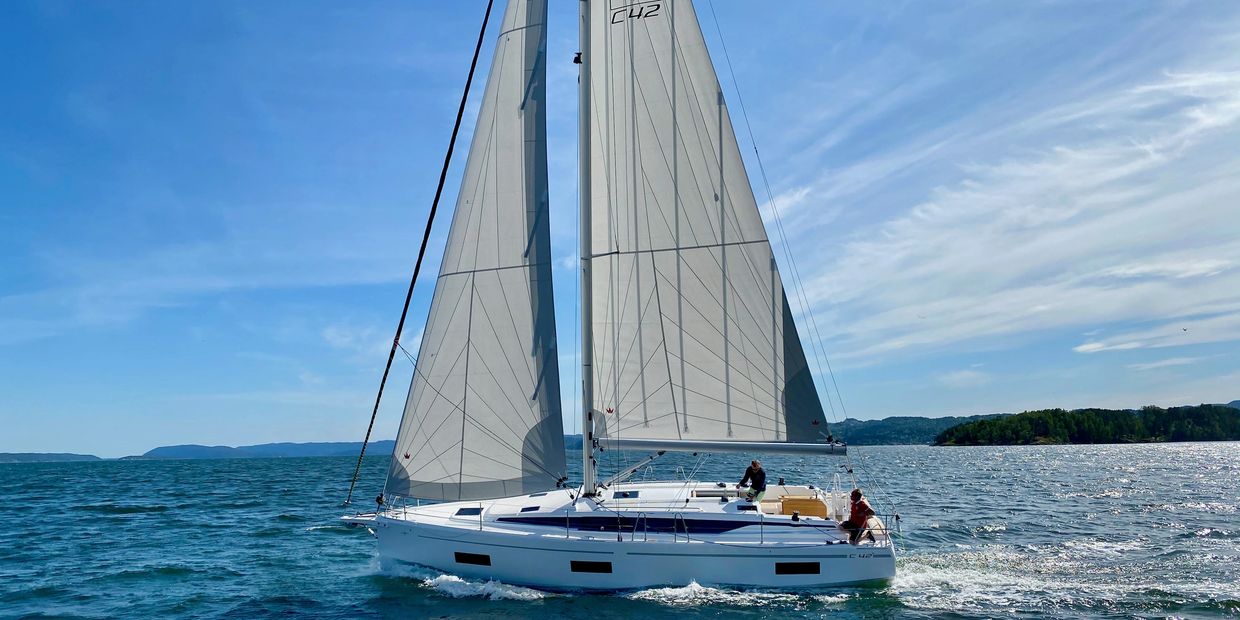

European Yacht of the Year 2021 Bavaria C42

Furling Mainsail Elvström  Cruisetech Dacron – Intercoastal Waterway Rigging

Furling Jib Elvström  Cruisetech Dacron

Dimensions

I 57’ 4”

J 16’ 6”

P 54’ 1”

E 18’ 1”

CE Category A:2019/B:2235/C:2451

LOA 40’ 7”

LOA including bowsprit 42’ 3”

Hull Length 39’ 3”

LWL 37’ 7”

Ballast 6,541 lb

Displacement 23,995 lb

Furling Mainsail 460 sq ft

Jib 404 sq ft

Hull

· Produced by hand lay-up in E-glass, polyester resin and PVC foam core above waterline

· ISO NPG gelcoat in Signal White

· Cove- and waterline in ISO NPG gelcoat

· Reinforcements in way of shroud chainplates and in forward/aft compartments

· GRP innerliner in hand lay-up E-glass with polyester resin

· Including drainage grooves for bilge, passage for tubes, hoses and wiring plus reinforcements and bulkheads for water protection and loads

· Windows in mineral glass, 3 on each side

· 2 Mooring aluminum cleats midship, retractable

· Stainless steel bow protection

Engine

· Mechanical throttle mounted on cockpit side, starboard

· Yanmar 4JH57 diesel engine with 57hp with saildrive

· YD25 Electronic engine panel for start/stop and all engine and fuel information

· Separate circulation for freshwater heating (together with hot water boiler)

· 3 Blade Folding Bronze Propellor optimized for engine ratio (18 x 14 x 3L)

· 55.5 gallon diesel fuel tank

· Rated Output: 41.9 kW / 57hp

· Rated Speed: 3000 rpm

· Displacement: 134 cu. in.

· 4 Cylinders: in-line

· Bore x Stroke: 88mm X 90mm

· Emission Compliance: EU=RCD 2, BSO II, EMC. USA=EPA Tier 3

Fuel consumption based upon Engine Speed (min-1): 1600 uses ½ gal / 2400 just over 1 gal / 3000 just under 3 gal / ALL gallons per hour

Electrical System

1 x engine battery 12V / 95Ah, AGM

1 x service battery 12V / 2 x 95Ah, AGM

Battery charger 40Ah (3 channels)

Inverter 2000 W, 110V (true sine wave)

Navigation Premium Package Upgrade

· 2 x B&G Triton2 digital displays in cockpit

· B&G Wind Vane

· DST800 Transducer for speed, depth and temperature

· B&G Zeus³S 9" chart plotter with integrated GoFree™ Wi-Fi; all-weather touch screen and expanded keypad at cockpit table

· B&G Autopilot including compass

· B&G WR10 wireless remote control for autopilot

Sail Ready Package by Bavaria

· Tunnel bow thruster incl. 1 x 180 Ah battery

· 2 Mast Steps

· 1 Additional service battery, 12 V / 180 Ah, AGM

· Guard rail exit, both sides

· Anchor windlass with capstan winch, electrical

· Anchor, 16 kg, incl. Chain (8 mm, 50 m), galvanized

· Stainless Steel Bow Protection

· Curtains for coachroof and hull windows

· Blinds incl. mosquito nets for hatches in salon and cabins

· 1 vent on salon deck hatch

· 1 safety light per helmstation plus Footrests for helmsman, removable

· Mooring kit (4 fenders and 4 mooring lines) plus 2 Additional mooring cleats midship, stainless steel, fixed

· Ambient lights in pantry and spotlight at main bulkhead in salon stb

· Rope storage at coachroof

· Cockpit shower with cold and warm water

Entertainment Package Upgrade

· Fusion MS-RA770 Apollo Marine Radio Entertainment system with DAB+ and 2 speakers in salon

· Fusion ERX400 Apollo remote control with 2 speakers in cockpit

· TV preparation in salon, ready for you to add your own

· 3G/4G antenna WiFi

Galley

· L Shaped, port side

· Laminate countertop surface color Black

· 3 burner gas stove with oven

· Microwave PREPERATION only for 110 V, provide your own

· Top loading fridge, 110 L

· LPG gas system with locker for 1 bottle
